Price: $169.99
(as of Apr 08, 2024 02:39:33 UTC – Details)

Product Description

1 5-1 MC4 charging 2 USB Output

1 Lightweight 2 Specification

SHINEGIANT SG100 Foldable Solar Panels for Power Station

Maximum Power(Pmax) 100W Solar Cell Monocrystalline Cell Efficiency 22-23% Optimum Operating Voltage(Vmp) 20V Optimum Operating Current(Imp) 5.05A Open-Circuit Voltage (Voc) 23.8V Short-Circuit Current (Isc) 5.55A DC 5-in-1 Cable 20V/5.05A(max) DC Connector XT60;Anderson;5.5*2.5mm;5.5*2.1mm;7.9*0.9mm; DC Output 5A Type-C PD3.0 60W 5V/9V/12V/15V/20V(3.0A) Note: If 20V protocol is required, the solar panel voltage needs to be greater than 22V. USB 1 Maximum 18W (5V3A/9V 2A/12V1.5A) USB 2 Maximum 18W (5V3A/9V 2A/12V1.5A) Folded Dimensions 14.56*21.45*0.78 in Unfolded Dimensions 50.2*29.77*0.71 in Weight 5.5 ± 0.1lbs

Q1.Does the 100W Solar Panel generate the full 100W of power?

In most cases, it is normal for solar panels to not deliver its full rated power. This is because the conversion of solar panels is affected by the following factors:

Light intensity

Angle of sunlight

Surface temperature

Panel shading

Q2.Under normal conditions, how much energy can the 100W solar panel generate?

It depends on the weather conditions. On a clear day with no clouds in the sky, a 100W panel will typically produce 70W-90W when the sun shines at a 90° angle on the panel.

Q3.Why are devices charging slowly?

A.Please check whether it is cloudy or rainy? Bad weather impairs the efficiency of the solar cells,and make sure there is nothing shadow cast on the panel.

B.Please replace the cable with a new one or use the solar panel in a sunny environment.

Are there any precautions for using SHINEGIANT 100W portable solar panel?

Please check the input specification, voltage and power of your device to ensure compatibility before purchasing the product.

Please check if the output voltage of the solar panel (12V-20V) is within the input voltage range of your device.

Q5.Can rain damage the solar kit?

Rain drop is OK as the protection is similar as the coating on most outdoor backpack, so to maximize its lifespan, keep it dry will be best.

Please do not press the solar panel with heavy objects, or it will damage the chip inside.

?High Conversion Efficiency?SHINEGIANT Floding solar panel of high-efficiency monocrystalline silicon solar cells with a remarkable 23% ultra-efficient conversion rate, generate up to 100W and 20V of power,ensuring you get the most out of every ray of sunshine.The built-in smart chip intelligently recognizes your device to maximize charging speed while protecting it from overcharging and overloading,delivering more energy and a longer lifecycle than traditional polycrystalline solar panels.
?40-50% Lighter than Traditional Crafts?Designed for portability and convenience,the 100W solar panel using the latest improved monocrystalline silicon solar wafers,it is 40%-50% lighter than traditional solar panels of the same power.Weighing only 5.5 lbs.Which is perfect for use in camping and other situations without electricity.When folded, it looks like an easy-to-transport briefcase and won’t take up too much of your space.

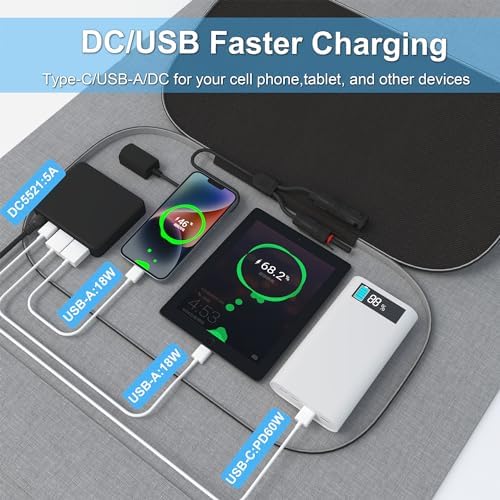

?Faster USB Charging?Besides the standard MC4 output, this solar panel features 1 DC5521 port, 1 Type-C PD60W fast charger, and 2 USB3.0 output ports, enabling you to charge not only your power stations but also your cell phone, rechargeable battery, tablet, and various other everyday devices.
?IP65 Waterproof & Durabel? With IP65 waterproof and dustproof rating,it can withstand any weather conditions without worrying about sudden rain. IP65 water-resistant can protect from water splashing, but please dot not place it under the rain, or soak it in water.

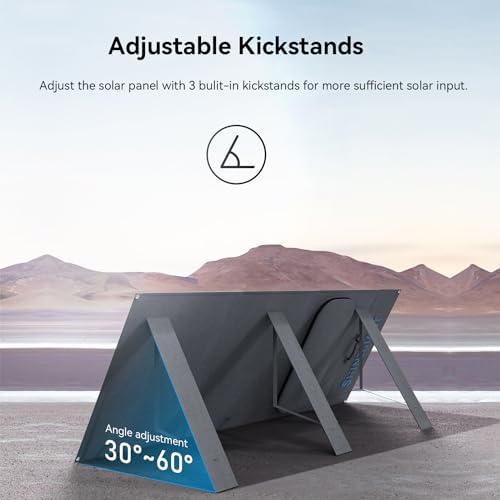

?Adjustable Kickstands?Shinegiant portable solar panels kit captures more solar energy by adjusting its stand to the perfect angle(30°~60°).Reinforced grommets provide additional mounting and tie-down capabilities for hanging from your RV or tent.
