Price: $1,329.99
(as of May 06, 2024 06:03:00 UTC – Details)

Product Description

4 x 100W Solar Panels
1 x 30A MPPT Solar Charge Controller/ Bluetooth
1 x 12V 100Ah LiFePO4 Battery
1 x 2KW Pure Sine Wave Inverter Charger
1 x Solar Cables
1 x Battery Cables
1 x Y Branch Adapter Cable
4 x Set 4 Z-Brackets & Hardware

ECI Power 400W 12V Solar Panel Kit

Off-Grid Ready, Highly Efficient, & Reliable

This Off-Grid Solar System Kit is a great option for a variety of applications, such as RVs, motorhomes, small homes, sheds, boats, remote farms, gardens, etc. This simple kit is a clean energy, upgradeable, and long-term solar system. Depending on your unique application, this system can both help reduce energy costs when incorporated into an electrical system or provide free and consistent electric power to any place outside of a power grid.

12V 100Ah LiFePO4 Battery

Nominal Voltage: 12.8v
Terminal Type: F12/ M8
Dimensions (L x W x H): 13 x 6.8 x 8.4 (H + Terminal: 9.3) Inch
Weight: 22.6lbs
Max. Continue Discharge Current: 100A
Max. Permanent Discharge Current: 200A 2Sec.
Max. Continue Charge Current: 50A

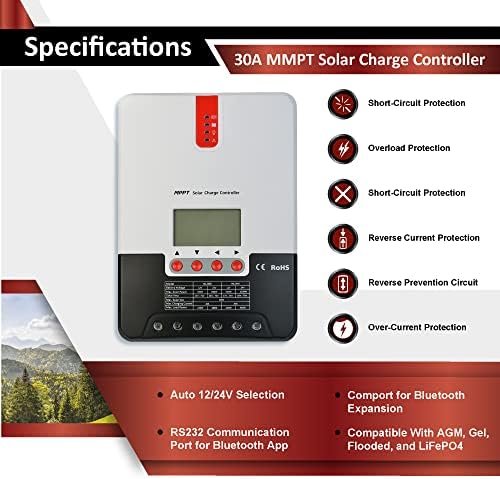

30A MPPT Solar Charger Controller

Nominal Voltage: 12/24V Auto Recognition
Rated Charge Current: 30A
Max. PV Input Voltage: 100V
Battery Type: SLA, Flooded, Gel, AGM, LiFePO4
Dimensions: 9 x 6.5 x 2.5 in
Weight: 3.75 Lbs

Bluetooth Module

Dimensions: 4.68 x 2.95 x 1.08 in
Weight: 0.27 Lbs

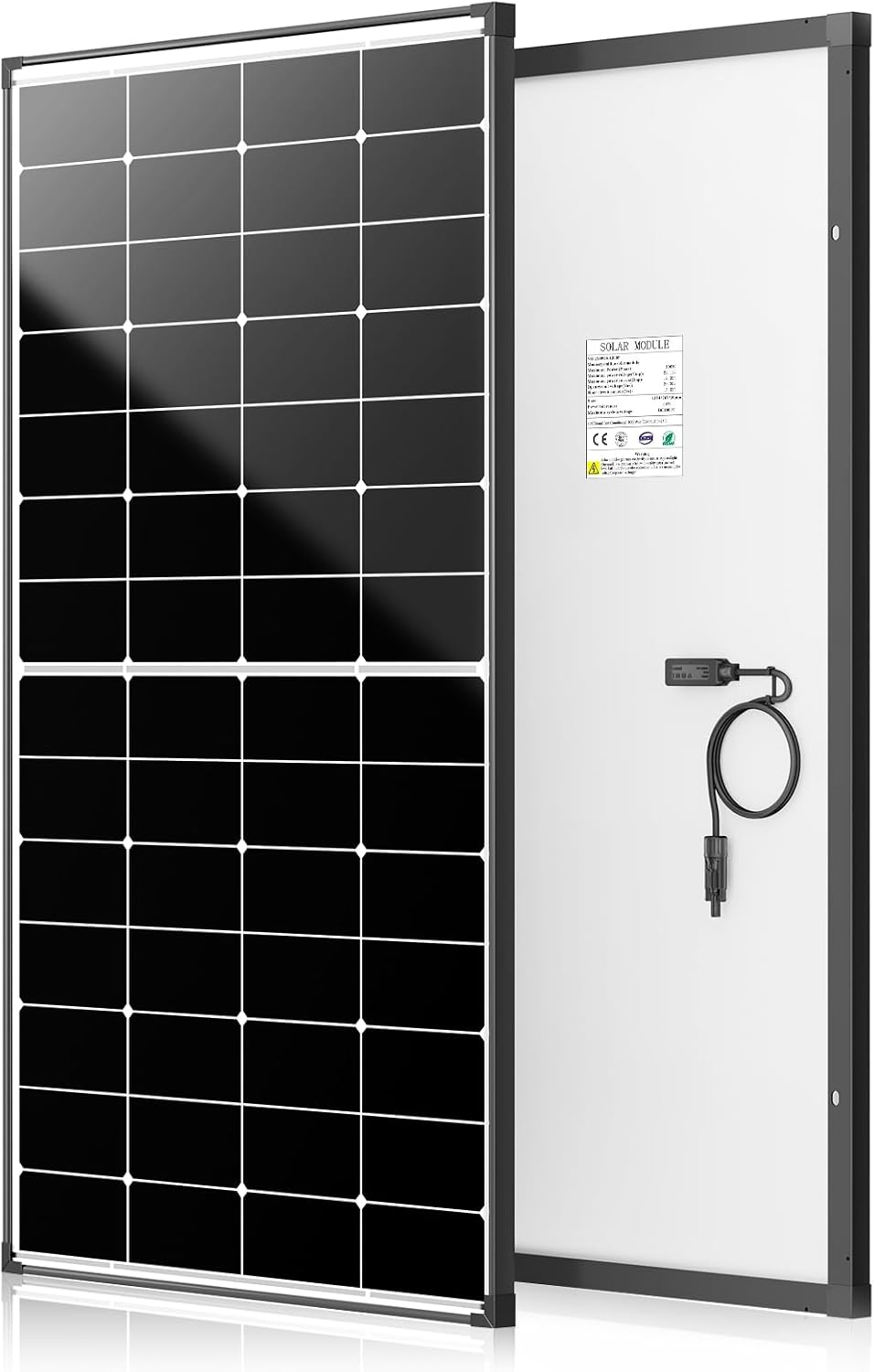

100W Rigid Solar Panel

Cell Type: Monocrystalline
Rated Voltage [Vmpp]: 18 V
Rated Current [Impp]: 5.56 A
Open Circuit Voltage [Voc]: 22.5 V
Short Circuit Current [Isc]: 5.84 A
Dimensions: 40.16 x 20.08 x 1.38 in
Weight: 12.8 Lbs

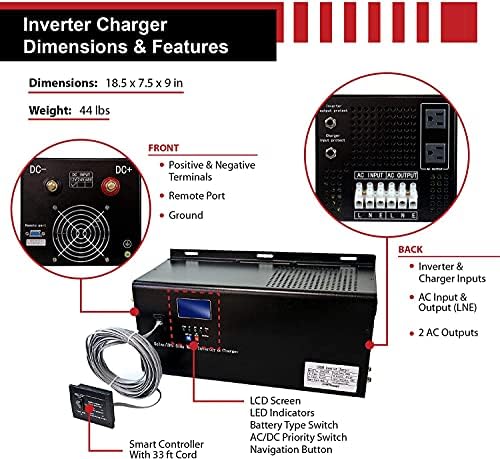

2KW Pure Sine Wave Inverter Charger

Rated Wattage: 2000W
Rated Surge Wattage: 6000W
Dimensions: 18.5 x 7.5 x 9 In
Weight: 44 Lbs
Battery Charger current: 30A
Rated Input Voltage: Seal lead-acid, Flooded, Gel, AGM, Lithium LiFePO4

Solar Panel Cables

Length: 10Ft
Wire Gauge: 12AWG

Battery Cables

Lug: 3/8″
Length: 6Ft
Wire Gauge: 12AWG

Solar Panel Brackets

Type: Z Brackets
M6 x 16mm Hex Cap Bolt
M6 Split Lock Washer
M6 Flat Washer
M6 Hexagonal Nut
#10 x 1¼ in Self-Drilling Cap Screw

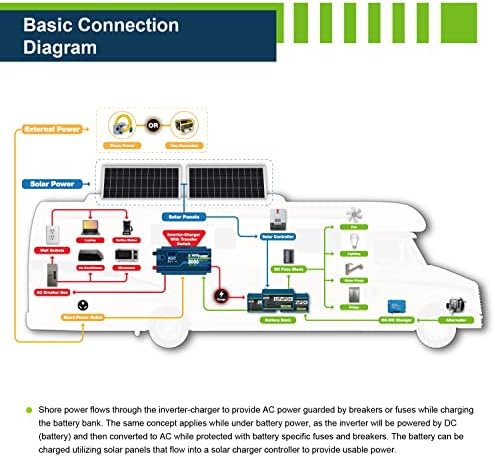

This Off-Grid Solar System Kit includes one 12V100Ah LiFePO4 battery, 4 x 100W Solar Panels and one 2000W Pure Sine Wave Inverter Charger and one 30A MPPT Solar Charge Controller with bluetooth, one pair 10ft 12AWG MC4 Solar Cables, one pair 6ft 12AWG Battery Cables and 4 x Solar Panel Mounting Brackets
The 2000W Pure Sine Wave Inverter/30A Charger is designed to meet the needs of all battery systems including AGM, Wet, Gel, and LiFePO4 with 8 profiles and built-in UPS functionality that automatically switch between shore power and battery power in an industry leading 5ms
The 30A MPPT controller utilizes modern solar technology to maximize your solar array’s power generation by over 20% through sophisticated tracking and capture compared to PWM with auto-detects 12V/24V systems
BMS-capable: Most Lithium batteries require BMS boards to protect the battery but the controller itself is able to operate with BMS-less batteries through its diverse set of protection capabilities including over-voltage, over-charge, low-voltage, deep discharge, and over-temperature compensation.
